德國HYDRO-BIOS公司——多通道沉積物捕獲器

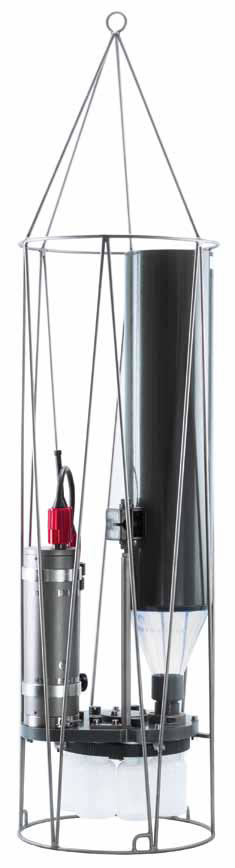

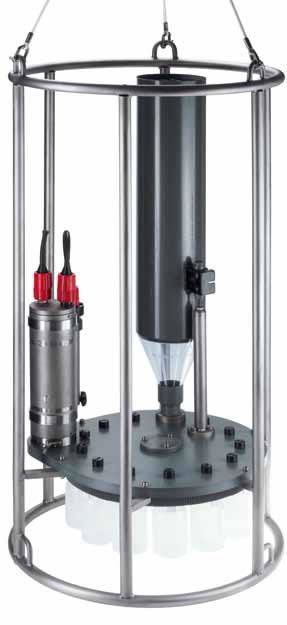

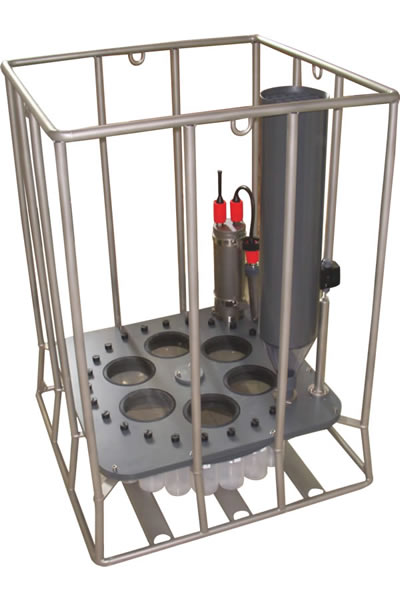

Multi Sediment Trap
多通道沉降物捕集器主要用于對相對垂直顆粒流較大的湖泊、大陸架和水棲環境的沉積物的自動采集。在北極、南極、熱帶、亞熱帶等環境中，經過無數次的長期野外操作，已經證明了它的可靠性。這款儀器不需要很重的固定線纜，它在較小的船上也可以很容易地安置和收回。多通道沉降物捕集器的控制裝置可以執行為期一年多的時間依賴性工作。為了防止捕集到的沉降物從沉降筒的上部被沖走，每個沉降筒在開口處都安裝一個可拆卸的塑料網格，沉降筒內部完全不含金屬。當多通道沉降物捕集器的采集瓶不工作時，它們與周圍環境是隔離的。在布放和回收操作期間，沉降筒底部是開放的，允許水流自動流過沉降筒腔體。
整體框架材質為鈦合金，完全抗腐蝕；整個系統由3節長時間鋰電池供電。根據不同的需求，不同多通道沉降物捕集器的收集瓶數量可以是6、12、24。
豪華型：
豪華型多通道沉降物捕集器通過電腦上的OceanLab軟件進行預編程，允許用戶實時（年、月、日、時、分）對每個收集瓶的采樣間隔單獨預先設定，從1分鐘至8760小時。豪華型采樣器可通過增加各種參數的不同傳感器進行升級，數據存儲器容量可達4M。
豪華型多通道沉降物捕集器規格：
框架材質：鈦合金
可安裝收集瓶數量：6個，12個，24個
收集瓶體積：250ml
采樣間隔設定：通過帶OceanLab軟件的電腦編程
開口面積：0.015m2
圓錐筒夾角：40°
沉降筒直徑與長度比例：1:4
最大操作深度：3000/6000/11000m
豪華型多通道沉降物捕集器訂購指南：
貨號 | 類型 | 尺寸 | 高度 | 空氣中重量 | 水中重量 |
444 101 | 6瓶 | 直徑320mm | 1200mm | 12kg | 5kg |
444 121 | 12瓶 | 直徑520mm | 1040mm | 25kg | 10kg |
444 141 | 24瓶 | 長度730×寬度730mm | 1020mm | 45kg | 20kg |
444 150 備用收集瓶，容積250ml，24個/套 | |||||
444 160 備用鋰電池，3節/套 | |||||

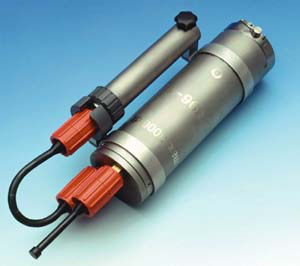

馬達單元 數據處理軟件
德國HYDRO-BIOS公司多通道沉降物捕集器國內應用案例
1、水產養殖領域研究：

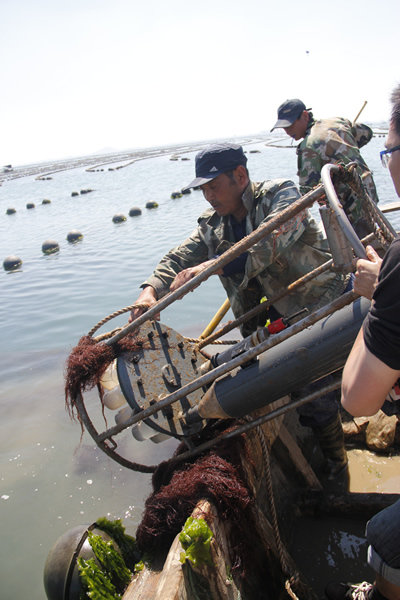

回收MST12 |

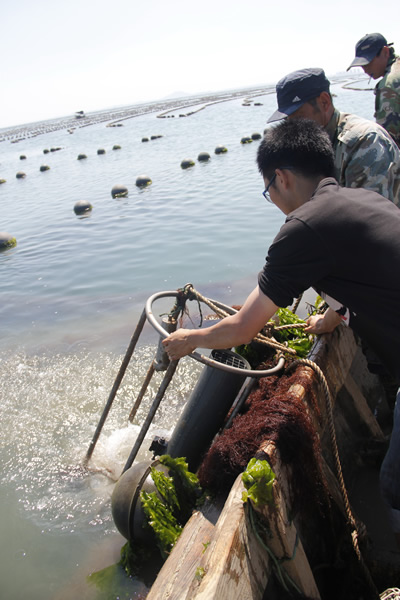

回收MST12 |

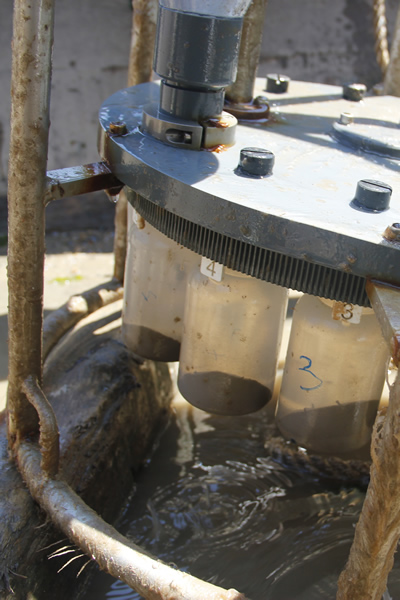

MST12捕集到的沉降物樣品 |
MST12多通道沉降物捕集器和Multi Limnos自動水樣采集器共同參與了山東某大型水產養殖企業海參養殖區水體和沉降物之間營養物質循環的研究，獲得了珍貴的數據，為今后餌料的投放建立了非?？茖W的數學模型，大大降低了企業的養殖成本。
2、海灣沉積動力學研究：
MST24 |

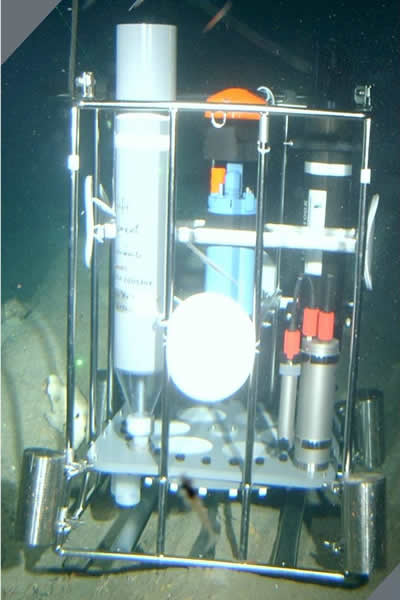

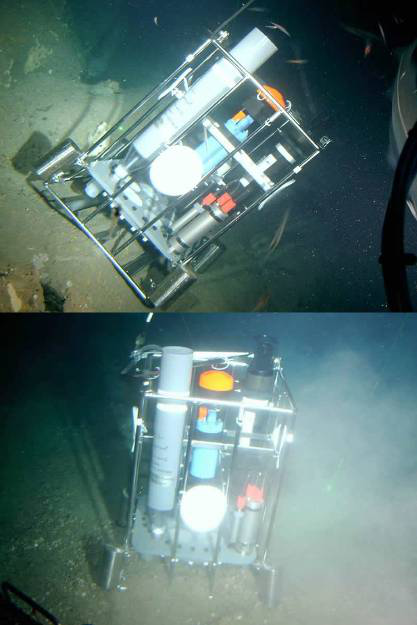

MST24坐底式布放 |
MST24坐底式布放 |
德國HYDRO-BIOS公司MST24多通道沉降物捕集器參與了國家海洋局羅源灣沉積動力學科研項目。羅源灣位于福建省沿海東北部，閩江口以北約50公里，是少有的天然深水港灣，可全天候靠泊30萬噸輪船。羅源灣具備建造東方大港的條件，從“十一五”期間開始，羅源灣成為福建省重點建設的港口。羅源灣在行政區劃上隸屬福州市，北岸屬羅源縣，南岸屬連江縣。根據海峽西岸經濟區規劃，列為福州港的深水外港。羅源灣在福建省、乃至中國港口的發展中有著非常重要的地位，對它的研究也勢在必行?？蒲腥藛T將MST24長期坐底式布放在羅源灣，成功捕集到了大量具有代表性的自然沉降物，為羅源灣沉積動力學的研究提供了真實可靠的數據。
資料下載：
代表文獻：
1.Jürgen Lenz, Alvaro Morales, Judith Gunkel,1993.Mesozooplankton standing stock during the North Atlantic spring bloom study in 1989 and its potential grazing pressure on phytoplankton: a comparison between low, medium and high latitudes.Deep Sea Research Part II: Topical Studies in Oceanography.40(1-2):559–572.
2.Dethleff, Dirk, Nürnberg, Dirk, Reimnitz, Erk, Saarso, Maart and Savchenko, Y.P.,1993.East Siberian Arctic Region Expedition '92: The Laptev Sea - its significance for Arctic sea-ice formation and transpolar sediment flux.Reports on Polar Research.120:3-48.
3.Bloesch Jürg,1996.Towards a new generation of sediment traps and a better measurement/understanding of settling particle flux in lakes and oceans: A hydrodynamical protocol.Aquatic Sciences.58(4):283-296.
4.A. Accornero, A. Bergamasco, A. Monaco, S. Tucci,1999.Particle Fluxes at the Edge of the Ross Ice Shelf: the Role of Physical Forcing.Oceanography of the Ross Sea Antarctica.177-195.
5.David N. Thomas, Hilary Kennedy, Gerhard Kattner, Dieter Gerdes, G. S. Dieckmann, Carl Gough,2002.Biogeochemistry of platelet ice: its influence on particle flux under fast ice in the Weddell Sea, Antarctica.Ecological Studies in the Antarctic Sea Ice Zone.169-179.
6.A. ACCORNERO, C. MANNO, K.R. ARRIGO, A. MARTINI and S. TUCCI,2003.The vertical flux of particulate matter in the polynya of Terra Nova Bay. Part I. Chemical constituents.Antarctic Science.15 (1): 119–132.
7.Alessandra Accornero, Marcia M. Gowing,2003.ANNUAL SEDIMENTATION PATTERN OF ZOOPLANKTON FECAL PELLETSIN THE SOUTHERN ROSS SEA: WHAT FOOD WEBS AND PROCESSESDOES THE RECORD IMPLY?.BIOGEOCHEMISTRY OF THE ROSS SEA ANTARCTIC RESEARCH SERIES.78:261-278.
8.P. Moreira-Turcq, J.M. Jouanneau, B. Turcq, P. Seylerd, O. Weber, J.L. Guyot,2004.Carbon sedimentation at Lago Grande de Curuai, a floodplain lake in the low Amazon region: insights into sedimentation rates.Palaeogeography, Palaeoclimatology, Palaeoecology.214(1–2):27–40.
9.V. Ramaswamy, M.M. Sarin, R. Rengarajan,2005.Enhanced export of carbon by salps during the northeast monsoon period in the northern Arabian Sea.Deep Sea Research Part II: Topical Studies in Oceanography.52(14-15):1922–1929.
10.J. C. Colombo, N. Cappelletti, J. Lasci, M. C. Migoya, E. Speranza, and C. N. Skorupka,2006.Sources, Vertical Fluxes, and Equivalent Toxicity of Aromatic Hydrocarbons in Coastal Sediments of the Río de la Plata Estuary, Argentina.Environmental Science & Technology.40(3), 734–740.
11.L. Roselli, C. Manno & G. Spezie ,2007.Inertial oscillations and particle flux interactions in a marine protected area in Gulf of Naples.Chemistry and Ecology.23(2):177-190.
12.C. Manno , S. Sandrini, L. Tositti, A. Accornero ,2007.First stages of degradation of Limacina helicina shells observed above the aragonite chemical lysocline in Terra Nova Bay (Antarctica).Journal of Marine Systems.68(1-2):91–102.
13.Jan Michels, Gerhard S. Dieckmann, David N. Thomas, Sigrid B. Schnack-Schiel, Andreas Krell, Philipp Assmy, Hilary Kennedy, Stathis Papadimitriou, Boris Cisewski,2008.Short-term biogenic particle flux under late spring sea ice in the western Weddell Sea.Deep Sea Research Part II: Topical Studies in Oceanography.55(8-9):1024–1039.
14.C. Manno1, V. Tirelli, A. Accornero and S. Fonda Umani,2009.Importance of the contribution of Limacina helicina faecal pellets to the carbon pump in Terra Nova Bay (Antarctica).Journal of Plankton Research.32(2):145-152.
15.Andreas Kleeberg, Christiane Herzog, Michael Hupfer,2013.Redox sensitivity of iron in phosphorus binding does not impede lake restoration.Water Research.47(3):1491–1502.
